Welcome to this website featuring a pastime hobby, based about my home built Vintage Radios. As well as cycling and the great outdoor life I have been into Radio for the past 50 years. I built my first working Radio from a Philips Electronic Kit which was popular educational Christmas toys during my childhood days of the 1960s and early seventies. The pictures starting from the top left, in the order of 1 to 2 is a battery operated Short Wave Receiver built on Christmas day in 1977 and is still my most treasured Christmas presents. It was purchased from Tandy, which in its heyday was one of the UK leading high street stores for electronic gadgets until it ceased trading during the late 1990s. Picture 3 is a 1950s Mullard design based on there 20 watt push pull designed for high quality Hi Fi reproduction a bit before the transistor really caught up with us. The original design used the valve line up in the following order. GZ34 Rectifier. 2 EL34 Output valves. ECC83 Phase splitter and EF86 Input valve. This design of mine was built from a Kit purchased from Maplin Electronics which was a popular recommended City and Internet retail electronic store until it went into administration and stopped trading in 2018. It is basically the same circuitry with slight modifications. A solid state bridge rectifier replaces the GZ34 in the smoothing circuit. The pictures in the order of 4 and 5 feature my complete home built superhet valve radio. The circuitry was taken from some of my old electronic magazines and books. The valve line up is as follows. ECF82 is for the frequency changer and local oscillator. 2 EF80 are used for the Intermittent Frequency IF Amplifier. EBC81 is used for the diode detector and audio input stage. EL84 is used for the Output valve to drive a loudspeaker. The Radio covers the Short Wave bands between 1.6 to 30 Megahertz and the standard Medium AM broadcast band. The Short Wave bands used to give me many hours of pleasure but sadly because of the internet boom there are not many Shortwave broadcast stations around as International stations have moved onto the new digital platform. Also all BBC and UK independent radio stations have moved on to FM which gives the Medium Wave band limited choice. The pictures in the order of 6 to 11 feature my home built valve portable Hi Fi or so called Hi Fi system. The reason I mention is because it uses the Mullard range of valve amplifiers, designed for a output power of only 2 watts, consisting of the ECL82 Triode Pentode I call the super micro chip of the 1950s because it was used for the output stage in many radios, televisions and portable Record Players of that period. The 7th picture features the back inside of this design and right of the picture is a stereo amplifier with solid state rectification and the 2 ECL82 valve amplifiers. The left inside of this picture is a combined FM tuner and has Tone controlled pre amplifier bundled with a turntable for the reproduction of records. The FM tuner is also a superhet and uses pulse counting technology for the IF to save winding coils and although a Mono tuner it gives excellent Hi Fi Reproduction on Local and National radio stations. The valve line up is ECF80 frequency changer with a grounded grid RF stage. 3 EF80 are used for the IF amplifier and limiter. The FM detector is a 6AL5 Double Diode, wired as a voltage doubler or correctly known as a diode pump circuit. The Preamplifier is a simple Double triode ECC83 affair for both stereo channels.

Transistor Shortwave Receiver. My tresured possession, built from a kit, on a table in the living room during Christmas day 1977

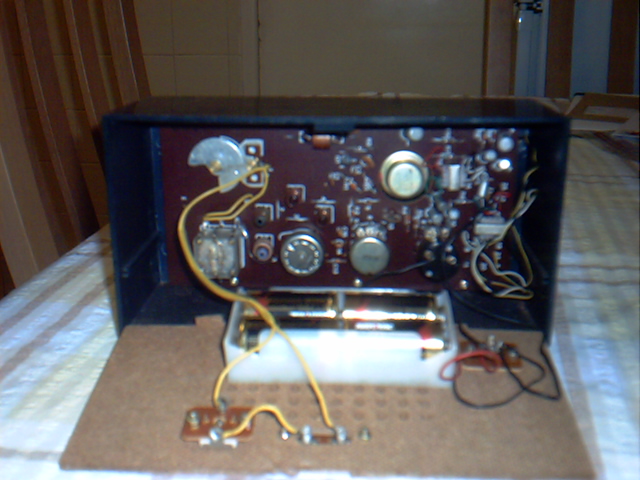

Transistor Shortwave Reciever. This is the back view of the previous design and has given me many years of portable listening pleasure.

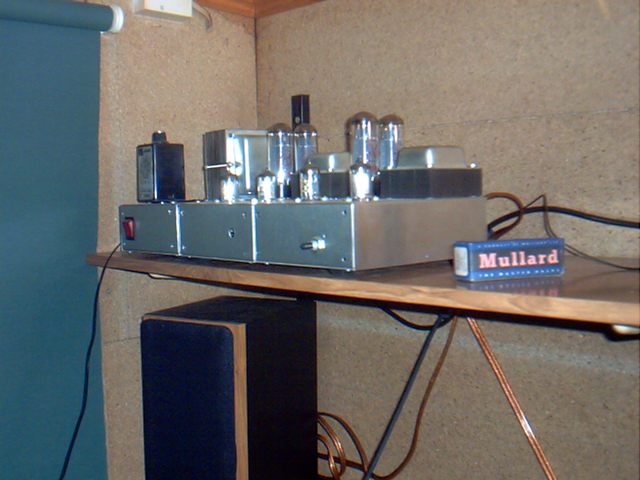

The Mullard 520 Hi Fi Valve amplifier of the 1950s. This is a homebuilt stereo design I built from a kit and is used for my multimedia listening.

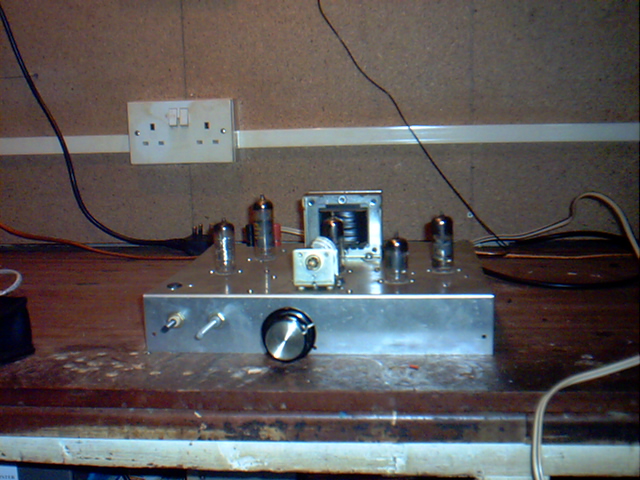

My homebuilt 5 valve superhet radio. I drilled all this Chassis myself and copied the circuitry from some of my radio books.

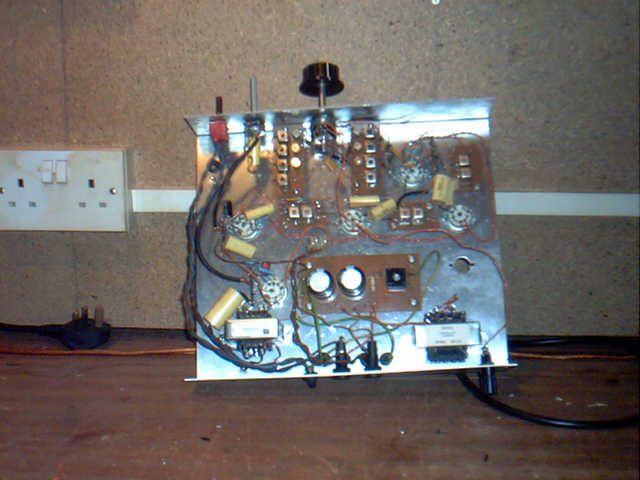

5 Valve superhet radio. This is the under chassis view of this homebuilt design and it uses modern transistor RF and IF coils, capacitor coupled.

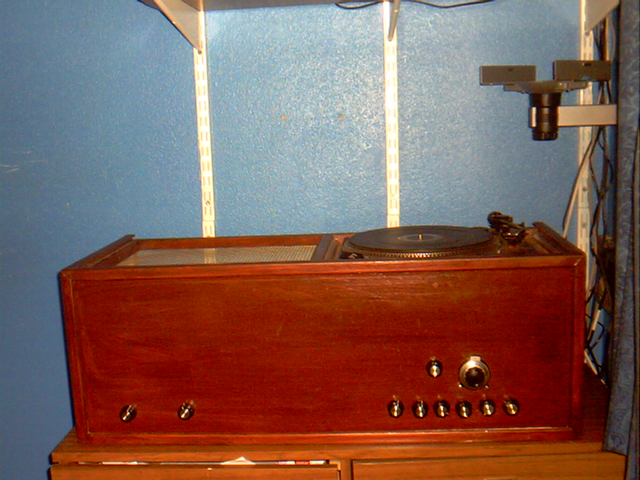

My Homebuilt portable valve Hi Fi system. This is the front view of this design. It has its own inbuilt preamplifier, VHF/FM tuner and record deck.

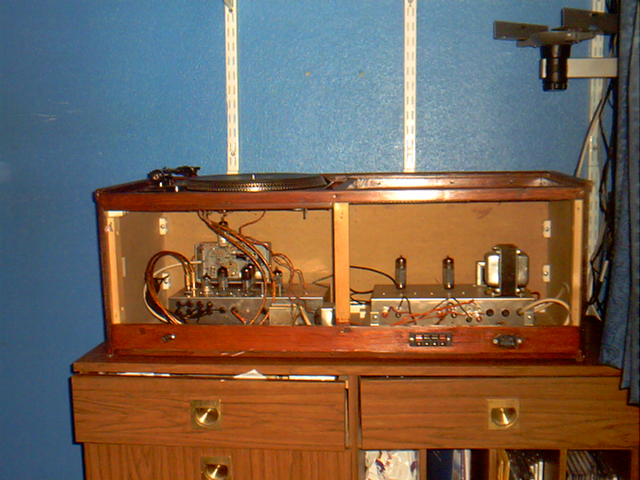

My Homebuilt Hi Fi System. This is the back inside view. Towards the right is the main amplifier and looking left is the FM tuner and preamplifier.

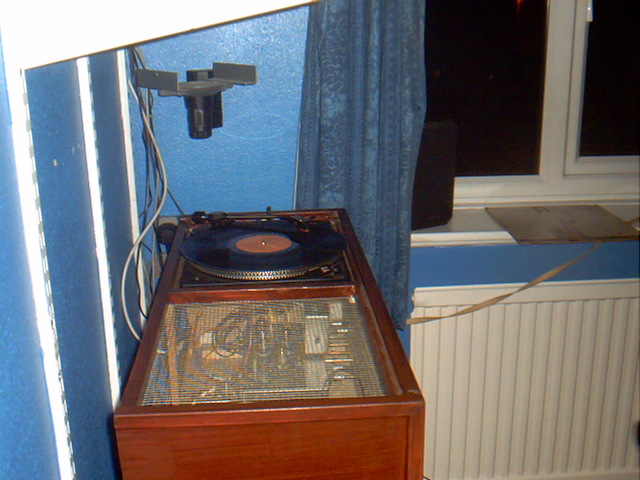

My homebuilt valve Hi Fi system. This is ovelooking the top of the entire unit during normal use.

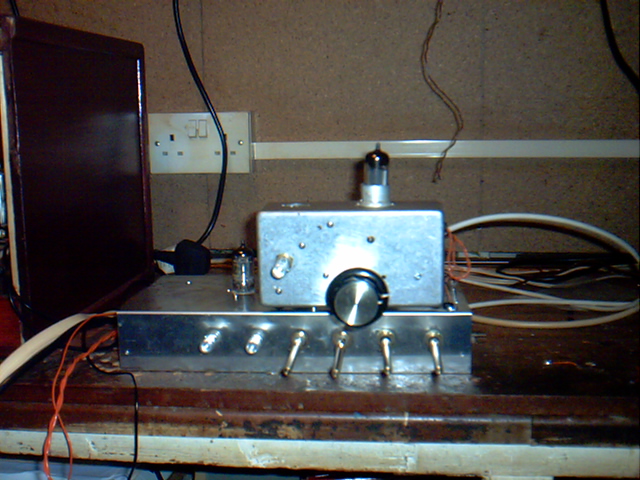

My homebuilt Hi Fi system. This is the front of the FM tuner and preamplifier chassis. The top right view is the FM tuner head, built in a diacast box

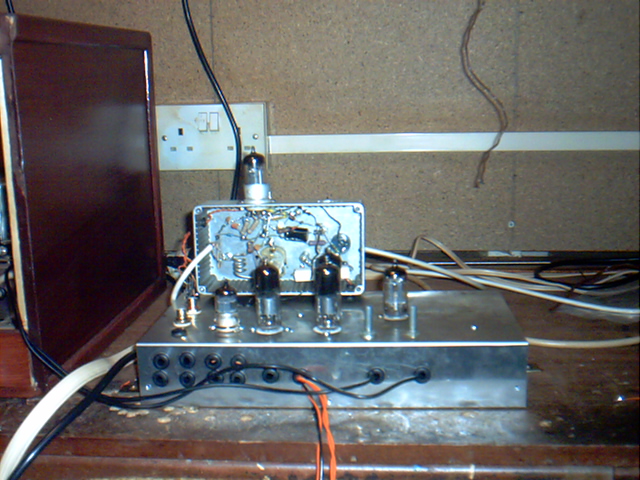

Home Built Valve Hi Fi system. This is looking at the back of the FM tuner and preamplifier. Taken during its final constuction.

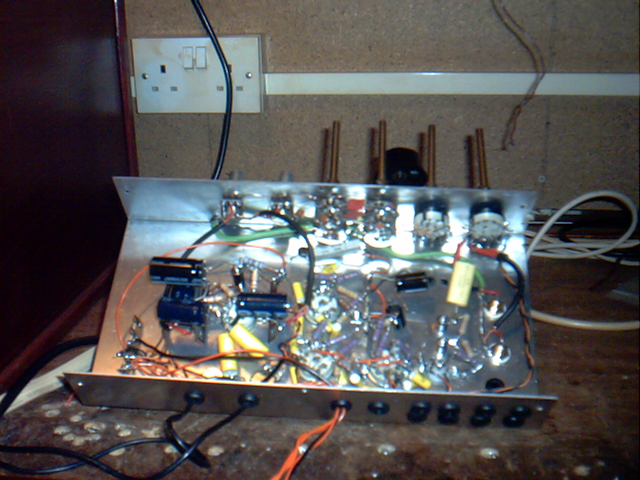

My homebuilt Hi Fi system. This is the underside cicuitry of the FM tuner and preamplifier. Typical old style of wiring, compaired to printed circuits

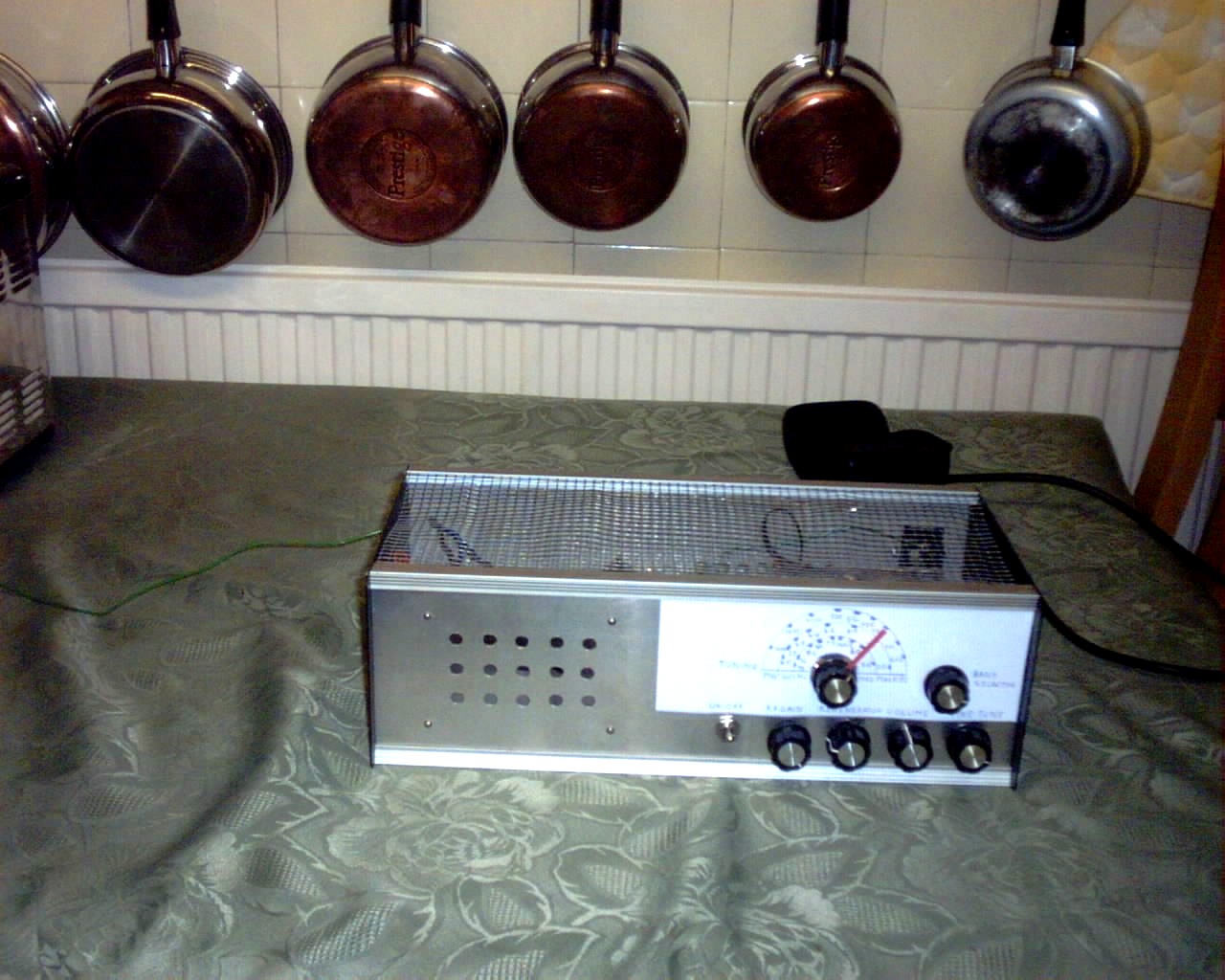

My homebuilt 2 Valve TRF Short Wave Receiver. This is a working version of the prototype, featured as a construction project on this website.

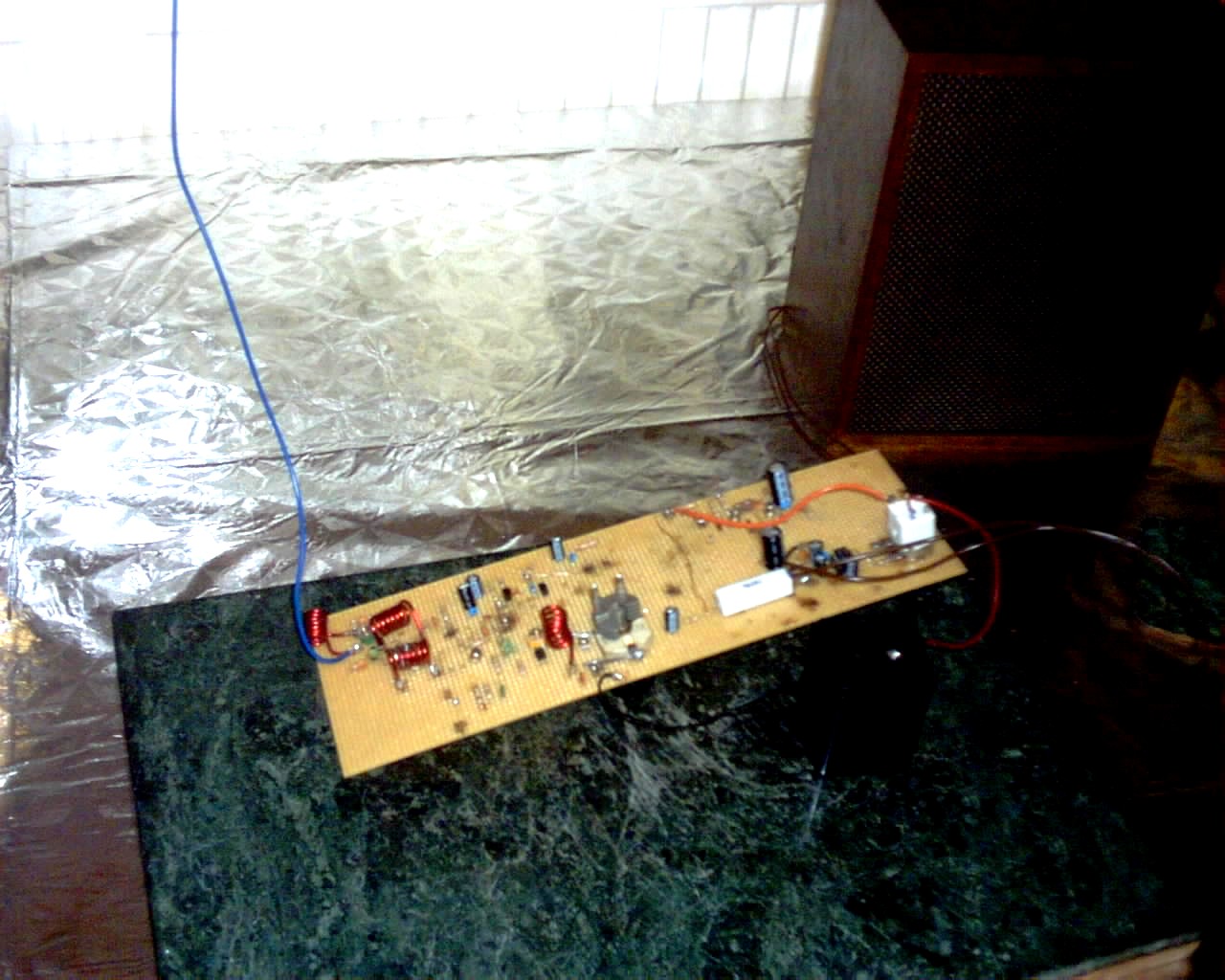

Transistor VHF/FM Receiver. This is my own design of a Pulse Counting Superhet Receiver. Similar to a 1960s version featured in Practical Wireless.
